Kemper Exhaust Systems for Welding Environments

£6,500.00

Kemper Fume Extraction Equipment – Clean air and safety at work are the main aims of the Kemper brand since the company was founded in 1977. Hazardous smoke and pollutants are generated during welding and cutting in the metal industry. Using Kemper extraction and filtering equipment, Kemper ensure that operators can still breathe in clean air. With their extensive range of health and safety equipment the Kemper range can provide protection against UV / IR radiation, heat, sparks and weld splatter, benefiting not only the operator but also the machinery and the environment. Kemper Products range from small units such as the Filter-Master to large extraction and filtration systems. Many of the smaller units are produced in both mobile and stationary versions. Kemper also supplies extraction tables, whether for large laser and plasma cutting machines, or for training purposes in schools and other educational institutions. Unlike conventional extraction tables, we use a surface extraction system, so that even finer dust is captured and directly separated out in the filter system. For specific requirements, technical advice or full extraction system planning and installation.

Add to Wishlist
Add to Wishlist

Description

Kemper Welding Fume Extraction Set

Elevate your workplace safety with our Welding Fume Exhaust Set, a cost-effective solution designed to efficiently clear the air of welding fumes, gases, vapors, and more. This comprehensive kit includes an exhaust arm and a powerful fan, providing an effective non-stop operation solution for environments where air filtration isn’t a necessity but cleaner air is.

Applications:

  • Perfect for environments with high levels of smoke and particles.
  • Ideal for continuous operation scenarios.
  • Where air filtration is not the primary requirement.
  • Effectively tackles welding fumes, gases, vapors, and light dust.

Benefits:

  • Exceptionally quiet operation, thanks to a robust cast silumin housing.
  • Streamlined exhaust hood design reduces adjustment needs by 40%.
  • User-friendly with smooth, one-handed hood movement.
  • The self-supporting arm design maintains its position effortlessly.

Key Features:

  • 360-degree rotating exhaust hood with damper for precise control.
  • Self-supported by internal springs for stability.
  • Flexible exhaust arm: Constructed with a polyester fabric hose, PVC coated, and reinforced with a welded steel wire spiral.
  • Rigid metal tube arm: Crafted from the powder-coated aluminum tube with three flexible hose sections.
  • Fan crafted from spark-proof cast silumin.

Variants:

  • Available in various arm lengths and versions.
  • Compatible with different voltages for versatility.

What’s Included:

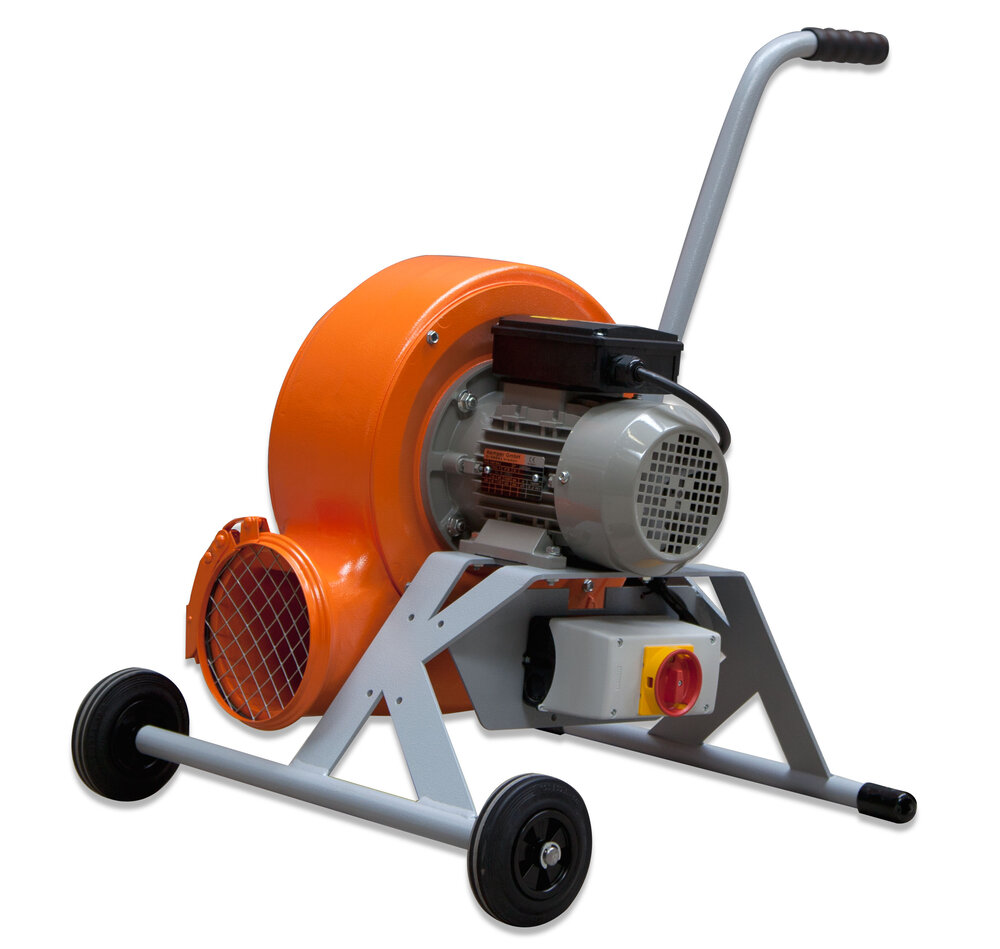

  • Fan for powerful air extraction.
  • Exhaust arm with a versatile hood.
  • Wall bracket for secure installation.
  • Motor protection switch for added safety.
  • Set of connecting materials for easy setup.
  • Extendable connecting pipe, ranging from 1.25 meters to 5 meters, with outlet.

Upgrade your workspace air quality effortlessly with our Welding Fume Exhaust Kit. Clear the air, reduce health risks, and enhance productivity with this essential solution.

Welding Fume Exhaust Specifications
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Extraction Capacity 1000 m³/h
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Max. Fan Performance 2000 m³/h
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Weight 39.5 kg
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Motor Power 0,75 kW
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Power Supply 3 x 400 V / 50 Hz
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Rated Current 1.5 A
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Noise Level 73 dB(A)
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Fan Type Radial fan
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Quantity of Extraction Arms 1
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Exhaust Arm Type flexible exhaust arm
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Diameter Extraction Arm 150 mm
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-2m Length of Exhaust Arm 2 m
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Extraction Capacity 1000 m³/h
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Max. Fan Performance 2000 m³/h
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Weight 43.5 kg
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Motor Power 0,75 kW
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Power Supply 3 x 400 V / 50 Hz
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Rated Current 1.5 A
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Noise Level 73 dB(A)
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Fan Type Radial fan
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Quantity of Extraction Arms 1
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Exhaust Arm Type flexible exhaust arm
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Diameter Extraction Arm 150 mm
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-3m Length of Exhaust Arm 3 m
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Extraction Capacity 1000 m³/h
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Max. Fan Performance 2000 m³/h
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Weight 48 kg
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Motor Power 0,75 kW
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Power Supply 3 x 400 V / 50 Hz
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Rated Current 1.5 A
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Noise Level 73 dB(A)
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Fan Type Radial fan
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Quantity of Extraction Arms 1
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Exhaust Arm Type flexible exhaust arm
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Diameter Extraction Arm 150 mm
KEMPER-WELDING-EXHAUST-SET-FLEXIBLE-4m Length of Exhaust Arm 4 m
