Description

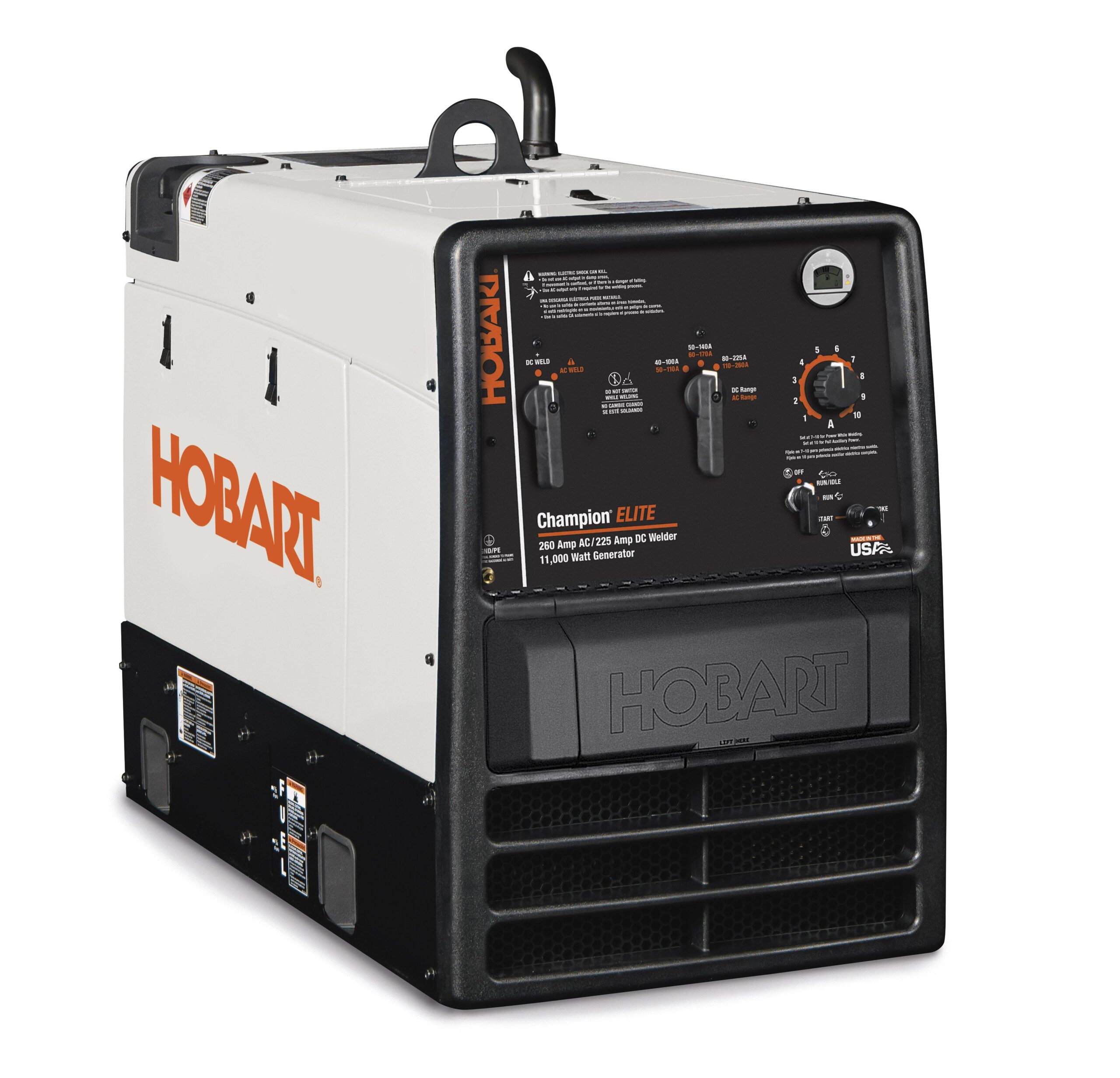

Hobart® Champion™ Elite 225 Welder 500580
The Hobart® Champion® Elite 225 is a 225 amp engine-driven welder and 10,000 watt AC generator that is small enough and light enough to fit in the back of most UTVs. Compared to previous models, the inverter technology in the Hobart 225 Welder sheds 122 pounds off the overall unit weight and 3 inches off the overall unit length; making this the lightest and most compact Hobart Champion Elite ever. It still packs plenty of power, though. The Hobart Champion Elite 225 produces 10,000 peak watts of AC generator power. Full 9,500 watts of continuous generator power for tools and lights are available at all times, even while welding at maximum output. DC welding output up to 225 amps provides smooth power for stick welding. The Hobart Champion Elite can weld up to 1/4″ steel in a single pass.
The Hobart 225 Welder features a rugged, fully enclosed case with convenient access panels on the top and both sides for easy maintenance. A simplified single knob control makes setting welding output extremely easy. Improved arc characteristics enhance arc starts, reduce weld spatter and produce better welds with all types of stick electrodes, including E6010. A Briggs & Stratton® Vanguard® 23 HP V-Twin gasoline engine provides long-lasting, reliable power to the Champion Elite 225.
Processes
- DC Stick (SMAW) Welding
- 10,000 Watt AC GeneratorApplications
Maintenance
Construction
Farm/Ranch
Rental
HomeFeatures
- Welds 1/8 inch up to 1/4 inch mild steel in a single pass
- 225 amp DC stick welder
- Just over 3 ft long and weighing just 368 lbs., this unit will fit into most UTVs and take up less space in all pickup truck beds
- 100% duty cycle at 225 amps
- 10,000 watts peak, 9500 watts continuous AC generator power
- Covered receptacle package that includes (1) 6- 50R 240V receptacle, (1) 14-50R 240V receptacle and (2) 115V 20A Duplex GFCI receptacles
- 11 gallon fuel tank for extended run time
- 23 HP Briggs & Stratton® Vanguard® engine w/ twin cylinder, 4-cycle, overhead- valve
- “No tools” oil change and standard hour meter to help maintain routine scheduled oil servicing
- Auto-idle for greater fuel savings and reduced noise
- Single knob amperage adjustment
- Manufactured in USA
Easier to Use and Maintain
The new Champion Elite 225 has multiple advantages that make it simpler to operate and speeds up routine service:
- Electronic fuel gauge with maintenance hours makes it fast and easy to check the fuel level and know when to get it into maintenance.
- Single-knob amperage control makes it faster and easier to set weld parameters.
- 240-volt receptacle allows plasma cutters and other tools to be used without an adapter.
- Updated design makes it easier and faster to access routine maintenance items like the spark plugs, fuel filter and oil drain plug.
- Commercial-quality engine is designed for a long life of reliable service.
Stick Welding Benefits
Stick welding (SMAW – Stick Metal Arc Welding) is a simple yet versatile, inexpensive and portable welding process. Flux coated welding rods are used, eliminating the need for bottled shielding gas like that used in MIG welding or TIG welding.
- Skill level required: Moderate
- Suited for windy, outdoor conditions
- Forgiving on dirty or rusty metal
- Can weld at a long distance from machine
Two-in-one 11,000-watt generator and 225-amp welder
- You get a generator and welder for about what you would pay for just a generator.
Innovative Hobart technology
- Allows you smooth arc starts with minimal “sticking”. Extraordinary motor starting characteristics. Strong continuous rating to run compressors, pumps, lights, hand tools and other equipment.
Heavy-duty construction
- Offers you stamina and long dependable service. Enclosed design, large battery, rugged electrical connections and wiring, and circuit breaker protection.
Lightweight and compact design
- Machine is just over 3 ft long and weighs less than competitive units, allowing you to easy move it around.
Modern OHV Kohler engine
- Saves you time and money with the dependable engine which conserves fuel and provides long operation before refueling. 12-gallon fuel tank and low oil pressure shutdown are standard features.
A “no tools” oil change and digital hour meter
- Relieves the hassle of changing oil by automatically scheduled routine oil servicing (every 100 hours) and other preventative maintenance.
Quick-set current control
- Easy for you to set up and start welding.
Smooth DC weld output
- The Champion ELITE provides you a smooth arc for scratch start DC TIG welding, primarily designed for the Stick process.
