Haskel High-Pressure Air Compressors for Diving Operations

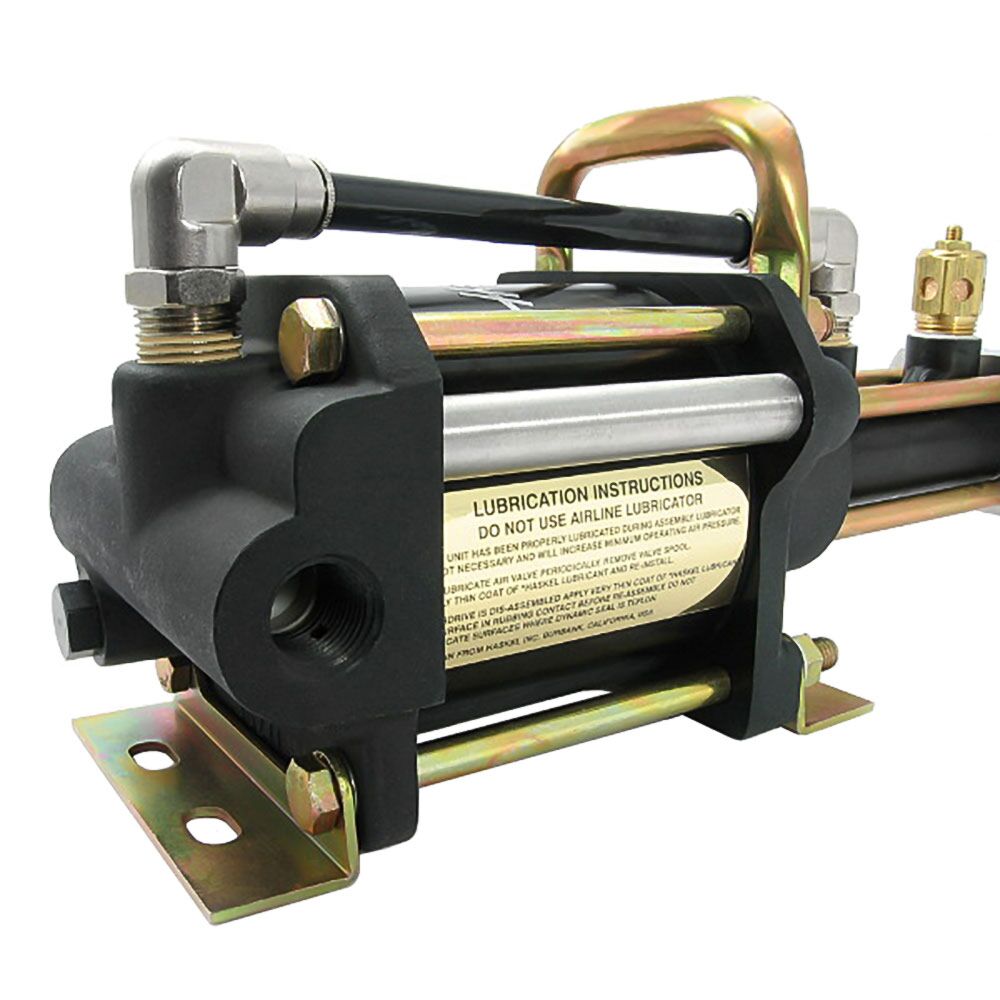

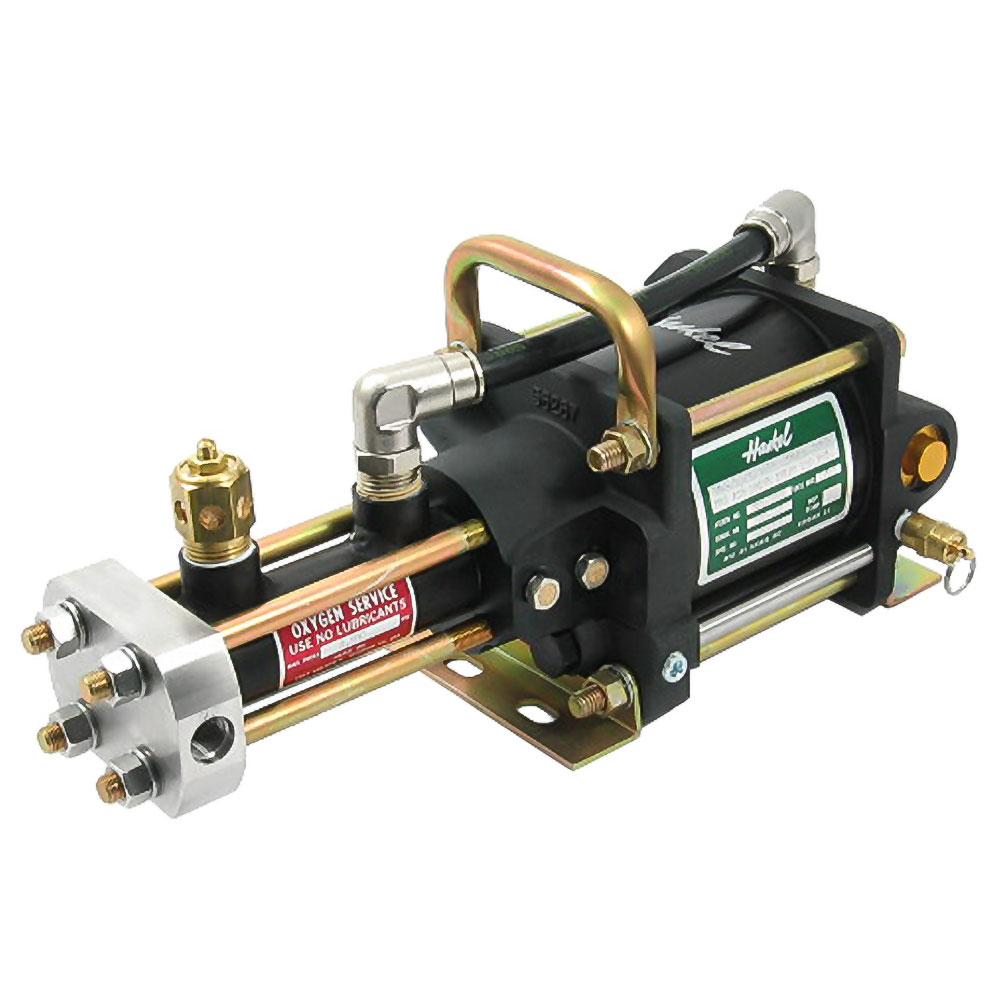

The approximate size ratio of the { 4 in | 10.1 cm } air drive piston to the gas piston is 25:1. The oil-free MSB-9000 Mini Sport Booster is factory cleaned by Haskel for 100% Oxygen Service. As delivered, you can use it to boost pure oxygen, but it can also boost pure helium (plus other inert gases like argon & nitrogen), pure air, as well as nitrox and trimix mixtures of those gases. (Note that depending on the physical properties of the gas being boosted, efficiency and fill times can vary considerably from those of pure oxygen.) The boosters from Dive Gear Express are also factory fresh production, in-stock and immediately shipped directly to you from our warehouse.

The very small size { 14 in L x 6 in W x 6.5 in H | 35.6 cm W x 15.2 cm H x 16.5 cm D } and weight { 12 lb | 5.4 kg } allow it to be conveniently transported. The Mini Sport Booster can fill cylinders up to 3300 psi and it can boost with source gas pressures as low as 100 psi. Popular with technical and rebreather divers, the Mini Sport Booster allows deco & inflation bottles, oxygen and diluent rebreather cylinders to be filled when low pressure compressed air is the only source of power available. Operating with a drive air pressure of just 140 psi means it can be supplied by the LP port of a typical SCUBA first stage regulator and tank.

THE MINI SPORT BOOSTER IS FAST

Take a look at the fill times in the table below. For example, starting with a supply pressure of just 1000 psi, to fill an AL-19 cylinder to 3000 psi takes just 3 minutes. The Haskel Mini Sport Booster is reliable too, with a one year factory warranty. The Haskel name in boosters has long been recognized for their quality.

• Low Weight Portability
• Locking Speed Control Sound Muffler
• Relief Valve for Integrated Air Drive Protection
• Integrated Cooling Jacket for Extended Seal Life
• Total Separation of Supply Gas and Drive Gas
• Cleaned for Oxygen Service

For maximum flexibility, the Haskel Mini Sport Booster is offered in a “naked” configuration, less fittings and hose assemblies. For our model number MSB-9000, the inlet and outlet gas ports accept standard SAE/UNF 9/16″-18 fittings and the drive gas inlet accepts a standard NPT 1/2″-14 fitting. Dive Gear Express offers optional fitting and hose kits, with our DGX Gears Deluxe Fitting and Hose Kit being our most popular complete solution.

Your Haskel Mini Sport Booster also ships with a factory hardcopy documentation package: Operating and Maintenance Manual including illustrated parts breakdown, Oxygen Usage – Best Practice Guide, test procedures, and a Certificate of Cleaning for oxygen service.

Features

1. The rotating parts are equipped with protective covers to ensure the safety of operators;

2. High strength nylon cooling fan has better cooling effect;

3. Strengthen the shockproof pad for the base of profiled steel plate to make the equipment run more smoothly;

4. Compact structure, more convenient to move;

5. Motor driven or gasoline engine driven to meet the air supply requirements under various conditions;

6. Splash type efficient lubrication;

7. Air filter (paper filter element)

8. Oil water separator (standard with manual blowdown, optional with automatic blowdown)

9. The air purification system (standard with manual blowdown, optional with automatic blowdown) is composed of activated carbon,

molecular sieve and carbon monoxide absorbing molecules, which is a triple breathing air purification system. The reusable packing

cartridge is simple and convenient for replacement and cost saving

10. Manual power stop function (optional automatic stop)

11. Final safety valve, automatic relief of overpressure

12. Shockproof pressure gauge 0-5800psi / 400bar

13. The compressor base is made of fine and durable;

14. Stainless steel cooling system;

15. The operation mode is simple and convenient for maintenance.
