Description

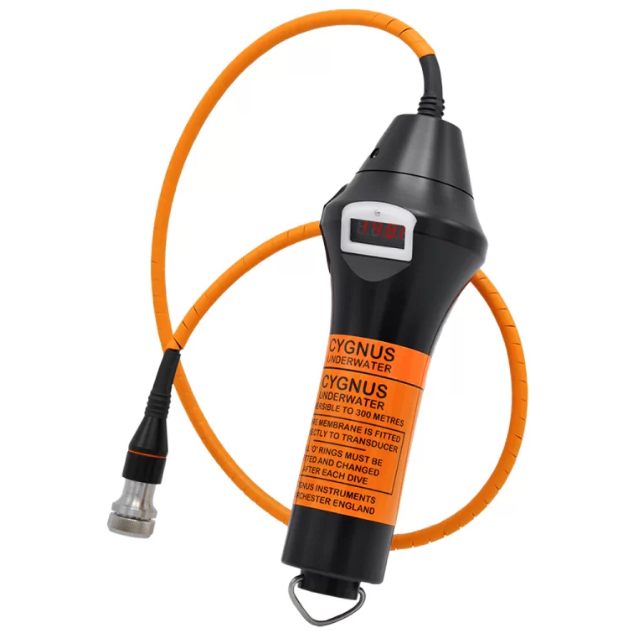

Key Feature of the Cygnus Underwater Ultrasonic Thickness Meter
- Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies
- Deep Coat mode ignores coatings up to 0.8 inch thick (upon request)
- Heavy duty sealed unit with double ‘O’ ring protection
- Rugged, durable, shock-proof construction
- Easy & stable calibration – no zero adjustment
- Echo strength indicator to aid measurement
- Two rechargeable battery packs with charger
- Auto-Probe Recognition (APR).
- Topside Repeater options:
Option A – Palm-held Topside Repeater (TSR) or;
Option B – CygLink software (Windows based) for data logging and remote display.
Cygnus-Pioneered Multiple Echo Technique
- Measures remaining metal thickness on corroded and coated structures
- All measurements are error checked using 3 return echoes to give repeatable, reliable results
- Accepted by all major classification societies
- Greatly reduces inspection time and costs
- Echo strength indicator to aid measurement.
| Materials | Velocities between 0.0800 to 0.2780 in/us – covers virtually all common engineering materials |
| Measurement Range in Steel | 0.040 – 10 inch depending on selected transducer and configuration, material and temperature |
| Accuracy | ±0.1 mm or 0.1% of thickness measurement, whichever is greatest, when calibrated in accordance with Cygnus Instruments calibration procedure |
| Resolution | 0.005 or 0.002 inch (selectable) |
| Probe Options | Single crystal transducers |
| Power | 2 x rechargeable NiMH battery packs |
| Battery Life | 2 x 20 hours continuous measuring (with fully charged battery packs) |
| Display | Large, bright LED display |
| Size | 9.4 x 3.4 inch (inc. battery pack and transducer head) |
| Weight | 35 oz (inc. batteries) |
| Operating Temp. | 14°F to 122°F |
| Environmental Protection | IP68 continuous 984 ft rating |
| Standards | Designed for EN 15317 |
| Compliance | CE, UKCA, RoHS |
