Name: Dynaforce Underwater Ultrasonic Thickness Gauge
SKU: 31965
Availability: InStock

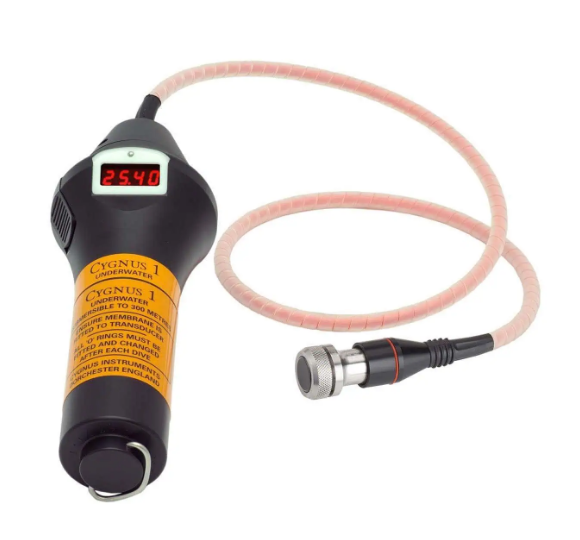

Dynaforce Underwater Ultrasonic Thickness Gauge

£3,150.00

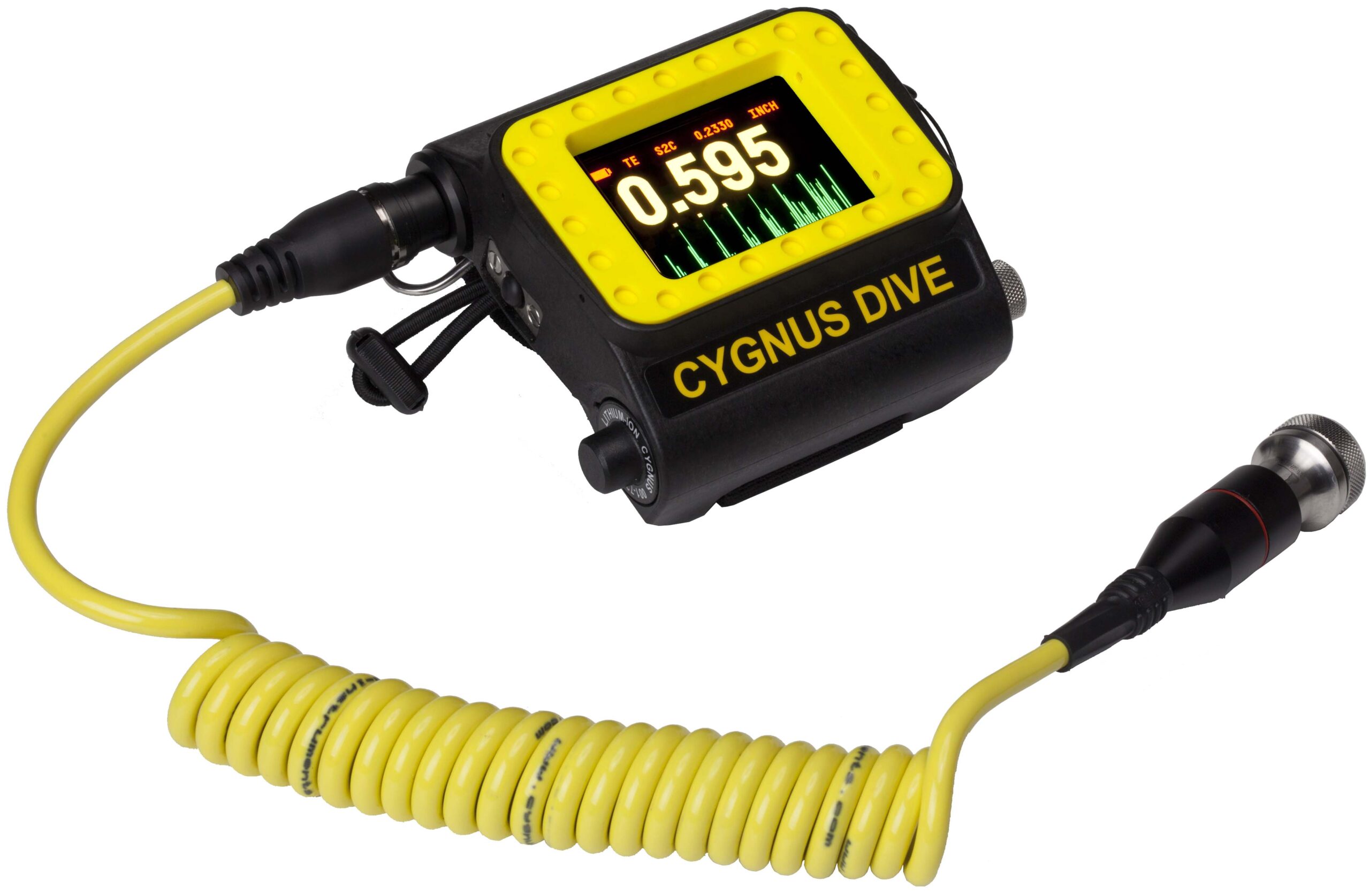

With its bright, very large, AMOLED display the Cygnus DIVE is simple to operate, providing accurate and reliable thickness measurements. Depth rated to 300 metres.

Available with data logging, topside, HelmetView™ and twin crystal probe options.

MSI™ Measurement Stability Indicator – this is a feature exclusive to the Cygnus. When using the DIVE Gage in Single Echo mode, MSI™ confirms when a reading is stable by turning the thickness measurement numbers from red to yellow.

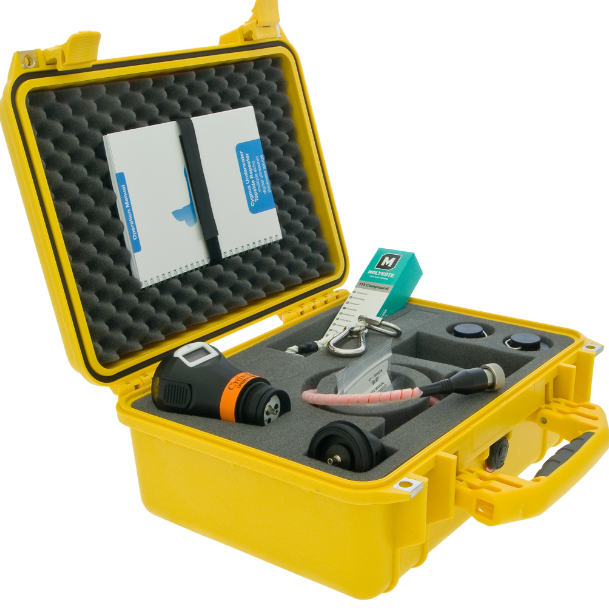

Description

Materials	Sound velocities between 2000 – 7000 m/s (0.059 – 0.31 in/microsec) covers all common engineering materials
Measurement Range in Steel	3 – 250 mm (0.110 – 9.995 in) with 2.25 MHz probe
Measurement Range in Steel	2 – 150 mm (0.065 – 6.000 in) with 3.5 MHz probe
Measurement Range in Steel	1 – 50 mm (0.045 – 4.000 in) with 5.0 MHz probe
Resolution	0.1 mm (0.005 in) or 0.05 mm (0.002 in) (selectable)
Power	NiMH rechargeable battery pack
Battery Life	30 hours (continuously measuring)
Display	Large, bright LED display
Weight	950 g (2.1 lbs) – with probe
Operating Temp	-10°C to +50°C (14°F to 122°F)
Environmental Protection	IPX8 continuous 300 m (984 ft) rating
Standards	Designed for EN 15317
Environmental	RoHS, WEEE compliant

Benefits of Cygnus Multiple Echo

Measures remaining metal thickness of corroded and coated structures
All measurements are error checked using 3 return echoes to give repeatable, reliable results
Accepted by all major classification societies
Greatly reduces inspection time and costs
Echo strength indicator to aid measurement.

With multiple echo, readings are taken by measuring the time delay between any three consecutive backwall echoes. The time of T1 (coating thickness) is ignored. The times of T2 and T3 are equal to the time that it takes to travel through the metal. Only by looking at three echoes can the measurements be automatically verified (where T2 = T3).

Key Features

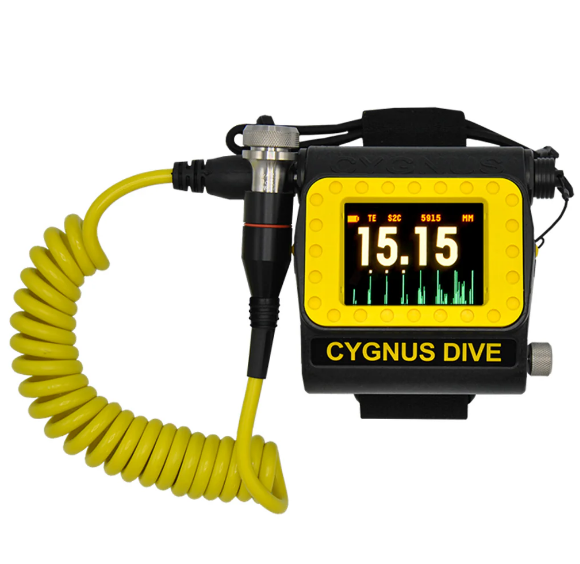

Wrist-mountable giving the diver a free hand
Large, bright color AMOLED display, highly viewable by diver and camera in poor visibility
A-Scan display to assist with measurement verification
Auto-Log Data Logging – option, no log button to press – stores up to 5,000 measurements with A-Scans
Multiple Echo means no need to remove protective coatings up to 20 mm (0.787″) thick
Error-checked Multiple Echo measurements to ensure genuine, verified measurements are displayed
Deep Coat mode to measure through coatings up to 20 mm (0.787″) thick
Single Echo mode with Twin Crystal probes
Probes are connected to the DIVE with a coiled double jacket cable which will extend up to 1 meter (3 ft)
Pressure tested to 300 meters (1,000 ft)
Rechargeable Lithium-Ion battery giving up to 11 hours continuous operation.

Specifications

Display	2.8” quarter VGA color AMOLED (320 x 240 pixels) Large clear thickness measurement (15 mm (0.591″) high numbers), viewable from all angles A-Scan display with automatic X axis Battery level, signal strength, probe type, velocity Measurement mode and units indication
Battery	Single 3.6V Li-ion 8.2 W battery 11 hours continuous measurement Low battery warning ‘alert’ message
Measurement Modes	Multiple Echo (three back-wall echoes) using Single Crystal (zero-degree) probes automatically ignores surface coatings and measures only metal thickness. Single Echo (first back-wall echo) using Twin Crystal probes
Deep Coat	In Multiple Echo mode, allows measurement to be made through thicker coatings of suitable materials of up to 20 mm (0.787″) thick
Probes	Single Crystal probes: 2.25 MHz 13 mm (0.512″) (standard) S2C 2.25 MHz 19 mm (0.748″) S2D 3.5 MHz 13 mm (0.512″) S3C 5.0 MHz 6 mm (0.236″) S5CTwin Crystal probes: 2.0 MHz 13 mm (0.512″) x2 (for cast irons etc.) T2C 5.0 MHz 8 mm (0.315″) x2 (standard) T5B
Probe Cables	Double outer jacket in tough PU. Colored yellow for easy locations underwater. Coiled for ease of use. Fischer S105 series connectors.
Measurement Ranges	Multiple Echo (through coatings) with Single Crystal probes: 2.25 MHz = 3.0 to 250 mm (0.110″ to 9.995″) 3.5 MHz = 2.0 to 150 mm (0.065″ to 6.000″) 5.0 MHz = 1.0 to 50 mm (0.045″ to 4.000″) Single Echo with Twin Crystal probes: 5.0 MHz = 1.5 to 50 mm (0.059″ to 4.000″) in steel 2.0 MHz = 2.5 to 150 mm (0.098″ to 6.000″) in steel
Measurement Resolution	Multiple Echo with Single Crystal probes – 0.1 mm or 0.05 mm (0.005″ or 0.002″) Single Echo with Twin Crystal probes – 0.1 mm or 0.01 mm (0.005″ or 0.0004″)
Measurement Units	mm or inches
Probe Zero	Fully automatic probe zeroing for all probes types
V-Path Correction	Automatic V-Path correction for all Twin Crystal probes
Velocity Range	2000 to 9000 m/s in 1 m/s setps (78740.158 to 354330.709 in/s in 39.370 in/s setps)
Pulser	Twin channel 70 V spike pulser
Receiver/Amplifier	10 MHz bandwidth, 120 dB range, automatic TCG 60 MHz measurement time-base
Data Logging	One-handed automatic logging of stable measurements. Capacity for up to 5000 points including 640 point A-Scan data.
Data Output	RS-485 single pair, half duplex for surface connection
Computer Software	CygLink v4 allows remote logging and viewing of A-Scan graphs. Survey and report generation to PDF file. Graphic analysis of data and statistical calculations. Designed for Windows 7 and Windows 8.
