Name: ACSR (Aluminum Conductor Steel Reinforced)
SKU: 64253
Availability: InStock

ACSR (Aluminum Conductor Steel Reinforced)

£10.99

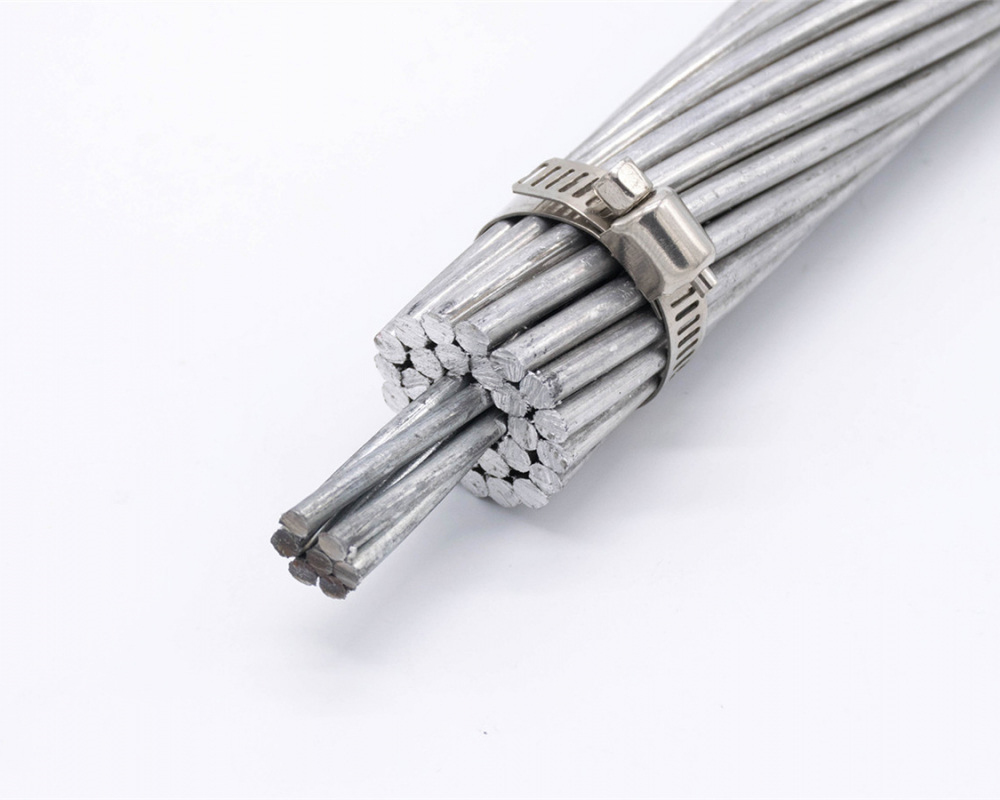

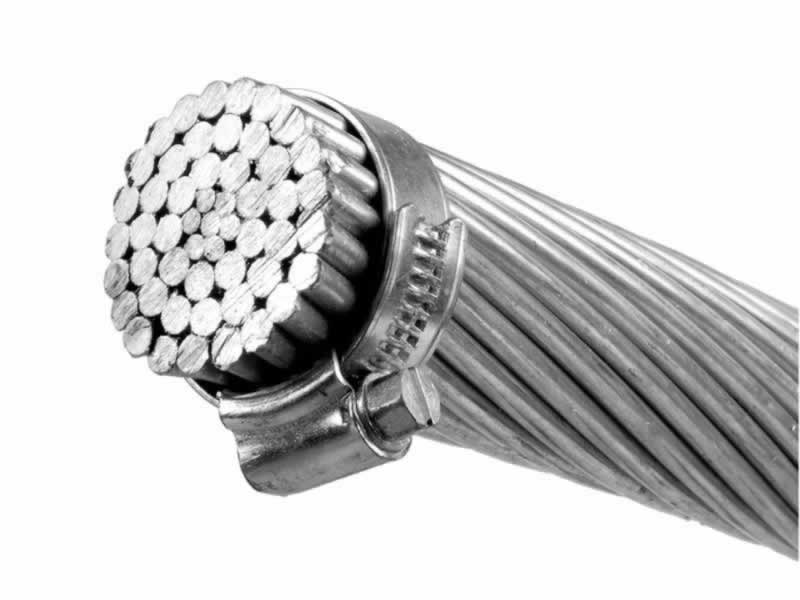

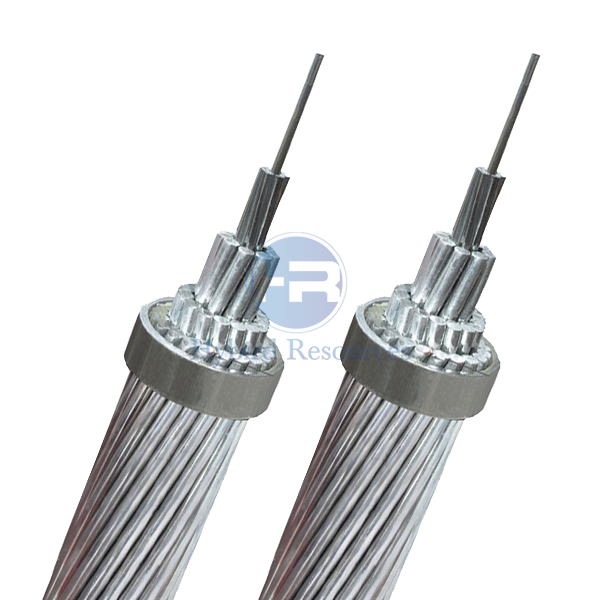

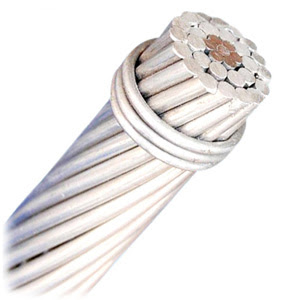

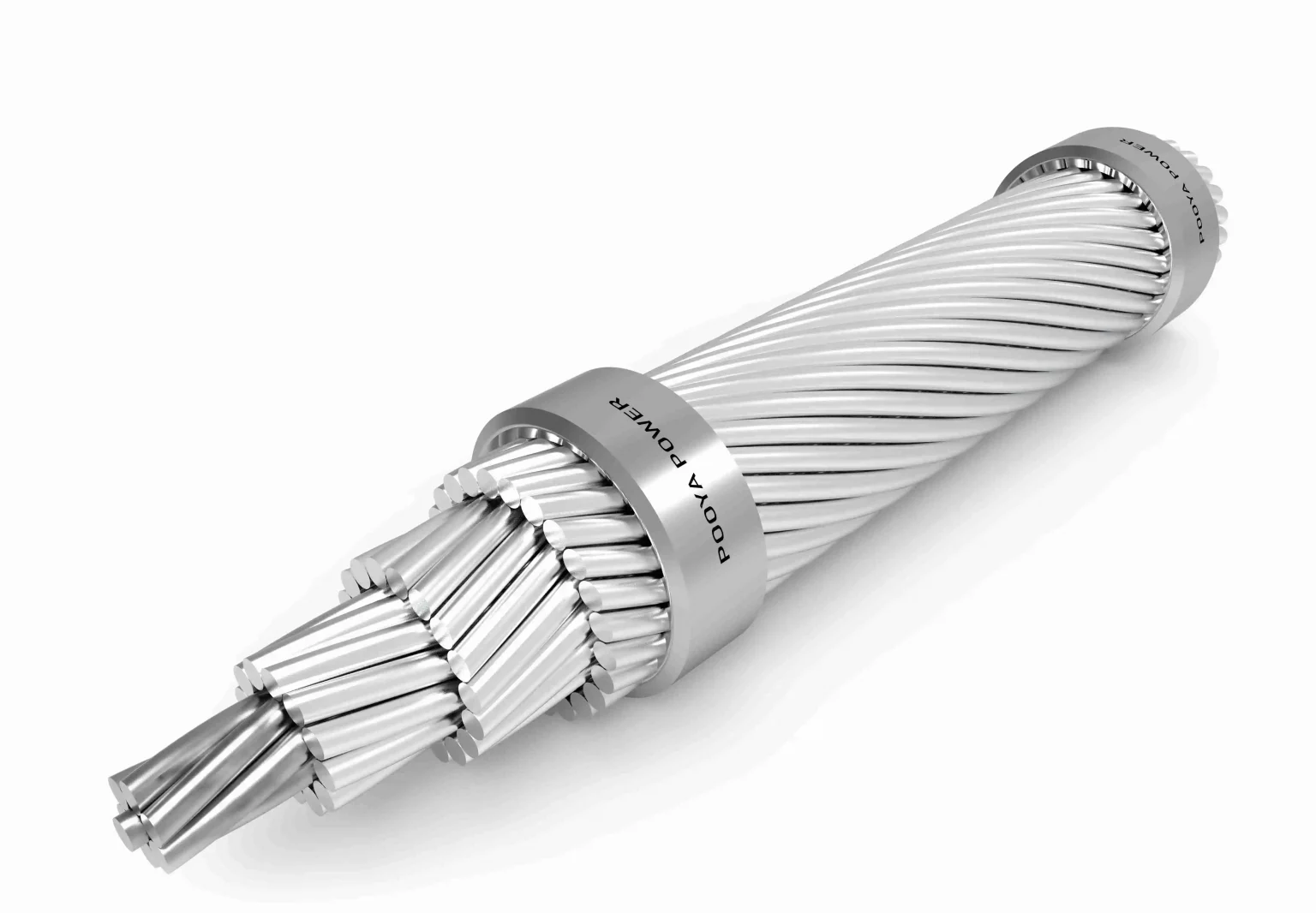

ACSR, or Aluminum Conductor Steel Reinforced, is a type of high-capacity, high-strength stranded conductor commonly used in overhead power lines. Its unique construction combines the excellent conductivity of aluminum with the high tensile strength of steel. The outer strands are made of aluminum, providing the path for the electrical current. At the core, steel strands are incorporated to bear the mechanical load, allowing for longer spans and reduced sag between support towers. This design makes ACSR a cost-effective and reliable solution for transmitting electrical power over long distances.

The advantage of using ACSR lies in its optimized balance between electrical and mechanical properties. Aluminum is lighter and a better conductor than steel, but it lacks the necessary tensile strength for long-span applications. The steel core provides this strength without significantly impacting the overall weight or conductivity of the conductor. Furthermore, the steel core can be galvanized to provide corrosion resistance, enhancing the lifespan of the conductor, particularly in harsh environmental conditions. Because of these characteristics, ACSR has become a standard choice for utility companies worldwide for both transmission and distribution lines.

Description

ACSR Cables In the realm of power transmission, efficient and reliable conductors are the backbone of modern infrastructure. Among these, Aluminum Conductor Steel Reinforced (ACSR) cables have emerged as a preferred choice for utility companies and engineers worldwide. By combining the conductivity of aluminum with the strength of steel, ACSR cables offer a unique blend of durability, flexibility, and cost-effectiveness. The Anatomy of ACSR Cables The construction of ACSR cables is a marvel of modern engineering. The core consists of a steel wire or a stranded steel cable, wrapped with a layer of aluminum strands. This hybrid design enables ACSR cables to capitalize on the benefits of both materials. The steel core provides exceptional mechanical strength, while the outer layer of aluminum offers excellent conductivity and corrosion resistance. The result is a cable that can withstand the rigors of harsh environmental conditions, while ensuring uninterrupted power flow. Key Benefits of ACSR Cables The advantages of ACSR cables are multifaceted. Firstly, their high conductivity reduces energy losses, making them an environmentally friendly choice. Additionally, the steel core ensures that the cables can withstand the mechanical stresses of wind, ice, and other external forces. Furthermore, ACSR cables are remarkably lightweight, which simplifies transportation and installation. This, in turn, reduces the overall project costs and timelines. With a lifespan of up to 40 years or more, ACSR cables require minimal maintenance, ensuring a seamless power supply to industries, homes, and businesses. Applications of ACSR Cables The versatility of ACSR cables makes them an ideal choice for a wide range of applications. They are commonly used in overhead power transmission lines, substations, and distribution lines. Moreover, ACSR cables find application in river crossings, where their high strength-to-weight ratio makes them an ideal solution. In urban areas, ACSR cables are often used in underground cabling systems, where space is limited and reliability is paramount. In conclusion, ACSR cables have revolutionized the power transmission landscape by offering an optimal balance of performance, durability, and cost-effectiveness. As the global demand for electricity continues to grow, the significance of these hybrid conductors will only increase, playing a vital role in shaping the future of modern societies.
